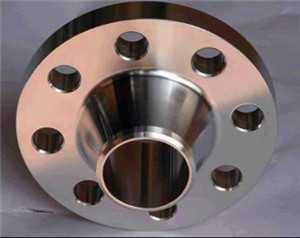

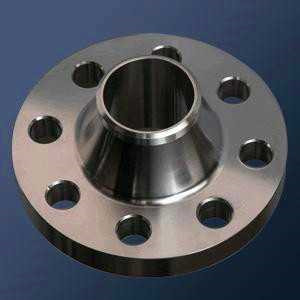

對焊法蘭
-
對焊法蘭是常用的法蘭的，對法蘭重量的查詢也是最多的，今天我把兩個系列的法蘭的重量都給大家展現出來了，
大家計算重量和價格用這個表完全就沒有問題了。
滄州信益專業生產各種材質和類型的法蘭的。
| 對焊法蘭Class系列重量規格表 | |||||||
| 公稱尺寸 | PN20 Class150 | PN50 Class300 | PN110 Class600 | PN150 Class900 | PN260 Class1500 | PN420 Class2500 | |
| DN | NPS | ||||||
| 15.00 | 0.50 | 0.91 | 0.91 | 1.36 | 3.18 | 3.18 | 3.63 |
| 20.00 | 0.75 | 0.91 | 1.36 | 1.59 | 3.18 | 3.18 | 4.09 |
| 25.00 | 1.00 | 1.14 | 1.82 | 1.82 | 3.86 | 3.86 | 5.90 |
| 32.00 | 1—1∕4 | 1.14 | 2.27 | 2.50 | 4.54 | 4.54 | 9.08 |
| 40.00 | 1－1∕2 | 1.81 | 3.18 | 3.63 | 6.36 | 6.36 | 12.71 |
| 50.00 | 2.00 | 2.72 | 3.63 | 4.54 | 10.90 | 10.90 | 19.07 |
| 65.00 | 2－1∕2 | 4.54 | 5.45 | 6.36 | 16.34 | 16.34 | 23.61 |
| 80.00 | 3.00 | 5.22 | 8.17 | 8.17 | 13.17 | 21.79 | 42.68 |
| 100.00 | 4.00 | 7.49 | 12.03 | 16.80 | 23.15 | 31.33 | 66.28 |
| 125.00 | 5.00 | 9.53 | 16.34 | 30.87 | 39.04 | 59.93 | 110.78 |
| 150.00 | 6.00 | 11.80 | 20.34 | 33.14 | 49.94 | 74.46 | 171.61 |
| 200.00 | 8.00 | 19.07 | 31.33 | 50.85 | 84.90 | 123.94 | 261.50 |
| 250.00 | 10.00 | 24.52 | 45.40 | 85.81 | 121.67 | 206.12 | 484.87 |
| 300.00 | 12.00 | 39.95 | 64.47 | 102.60 | 168.89 | 313.26 | 730.03 |
| 350.00 | 14.00 | 51.76 | 93.52 | 157.54 | 255.15 | 406.50 | |
| 400.00 | 16.00 | 64.47 | 113.05 | 218.37 | 310.99 | 525.00 | |
| 450.00 | 18.00 | 74.90 | 138.92 | 251.97 | 419.50 | 687.20 | |
| 500.00 | 20.00 | 89.44 | 167.53 | 313.26 | 528.46 | 852.60 | |
| 600.00 | 24.00 | 121.67 | 235.63 | 443.56 | 956.58 | 1366.80 | |
對焊法蘭PN系列重量規格表
|
公稱 尺寸 DN |
PN10 | PN16 | PN25 | PN40 | PN63 | PN100 | PN160 |
| 10.00 | 0.50 | 0.66 | 0.50 | 0.50 | 1.18 | 1.00 | 1.50 |
| 15.00 | 0.75 | 0.75 | 0.75 | 1.00 | 1.3 | 1.00 | 1.50 |
| 20.00 | 1.05 | 1.05 | 1.05 | 1.00 | 2 | 2.00 | 2.50 |
| 25.00 | 1.26 | 1.26 | 1.26 | 1.00 | 2.79 | 2.50 | 3.00 |
| 32.00 | 2.05 | 2.05 | 2.05 | 2.00 | 3.38 | 3.00 | 4.00 |
| 40.00 | 2.37 | 2.37 | 2.37 | 2.00 | 4.4 | 4.00 | 4.50 |
| 50.00 | 3.11 | 3.11 | 3.11 | 3.00 | 4.86 | 6.00 | 6.50 |
| 65.00 | 3.74 | 3.74 | 3.94 | 4.00 | 5.92 | 7.50 | 9.50 |
| 80.00 | 4.22 | 4.22 | 5.03 | 5.00 | 6.93 | 9.00 | |
| 100.00 | 5.39 | 5.39 | 7.01 | 6.50 | 9.98 | ||
| 125.00 | 6.88 | 6.88 | 9.61 | 9.00 | 15.6 | ||
| 150.00 | 9.13 | 9.13 | 12.70 | 11.50 | 23 | ||
| 200.00 | 11.80 | 11.50 | 17.40 | 21.00 | 35 | ||
| 250.00 | 15.60 | 16.70 | 24.40 | 34.00 | 48.9 | ||
| 300.00 | 18.60 | 22.40 | 31.90 | 47.50 | 68.3 | ||
| 350.00 | 24.50 | 32.00 | 48.00 | 69.00 | 95.4 | ||
| 400.00 | 29.50 | 40.00 | 63.00 | 98.00 | 141.3 | ||
| 450.00 | 34.00 | 54.50 | 75.50 | 105.10 | |||
| 500.00 | 39.50 | 74.00 | 96.50 | 130.50 | |||
| 600.00 | 56.00 | 116.50 | 138.60 | 211.50 | |||
| 700.00 | 65.00 | 87.00 | |||||
| 800.00 | 87.00 | 111.00 | |||||
| 900.00 | 106.00 | 129.00 | |||||
| 1000.00 | 123.00 | 169.00 | |||||
| 1200.00 | 184.00 | 251.00 | |||||
| 1400.00 | 252.00 | 329.00 | |||||
| 1600.00 | 363.00 | 476.00 | |||||
| 1800.00 | 445.50 | 582.00 | |||||
| 2000.00 | 558.00 | 720.00 |
有需要更詳細的資料的朋友，可以聯系站長，站長免費為大家提供！
